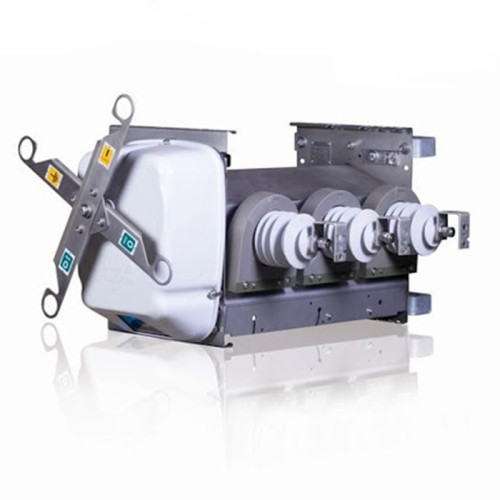

LBS khí SF6 ABB
- Nhà sản xuất: ABB
- Dòng sản phẩm: LBS - Cầu dao phụ tải
- Số lượng sản phẩm trong kho: 100
THÔNG SỐ KỸ THUẬT
|
Insulation level |
|
|
NXB and NXBD |
NXA |
||||||
|
Rated voltage |
kV |
12 |
24 |
36 |
||||||
|
Power frequency withstand voltage, 50 Hz |
|
|
|
|||||||
|
- to earth and between phases |
kV |
28 |
50 |
70 |
||||||
|
- across the isolating distance |
kV |
32 |
60 |
80 |
||||||
|
Lightning impulse withstand voltage |
|
|
|
|||||||
|
- to earth and between phases |
kV |
75 |
125 |
170 |
||||||
|
- across the isolating distance |
kV |
85 |
145 |
195 |
||||||
|
Current ratings |
|
|
|
|||||||
|
Rated normal current |
A |
630 |
630 |
630 |
||||||
|
Mainly active load breaking current |
A |
630 |
630 |
630/400 |
||||||
|
Number of breaking operations CO |
n |
400 |
400 |
100/400 |
||||||
|
Line-charging breaking current |
A |
50 |
50 |
2 |
||||||
|
Cable-charging breaking current |
A |
50 |
50 |
40 |
||||||
|
Earth fault breaking current |
A |
50 |
50 |
130 |
||||||
|
Cable charging breaking current |
|
|
|
|||||||
|
under earth fault conditions |
A |
28 |
28 |
80 |
||||||
|
No-load transformer breaking current |
A |
|
|
20 |
||||||
|
Short-circuit ratings |
|
|
|
|||||||
|
Short-time withstand current, Ik |
kA/s |
20 kA/4 s |
20 kA/4 s |
12.5 kA/3 s |
||||||
|
Peak withstand current |
kA |
50 |
50 |
31.5 |
||||||
|
Short-circuit making current |
kA |
50 |
50 |
31.5 |
||||||
|
Number of making operations |
|
|
|
|||||||
|
- main switch 50 kA (CL E3) |
n |
5 |
5 |
|
||||||
|
- main switch 31.5 kA (CL E3) |
n |
10 |
10 |
5 |
||||||
|
- earthing switch 50 kA (CL E2) |
n |
3 |
3 |
|
||||||
|
- earthing switch 31.5 kA (CL E3) |
n |
5 |
5 |
|
||||||
|
Creepage distance |
mm |
620 |
620 |
1440 |
||||||
|
Ambient air temperature limits |
|
-40°C...+60°C*1 |
-40°C...+60°C*1 |
-40°C...+60°C |
||||||
|
Mechanical endurance (number of close-open operations) |
|
|
|
|||||||
|
- main switch |
n |
5000 |
5000 |
5000 |
||||||
|
- earthing switch*2 |
n |
2000 |
2000 |
|
||||||
|
Filling pressure (+20°C) |
bar (abs) |
1.4-1.5 |
1.4-1.5 |
1.8-1.9 |
||||||
|
Alarm pressure (+20°C) |
|
|
|
|||||||
|
- density switch |
bar (abs) |
1.2 |
1.2 |
1.65 |
||||||
|
- density gauge |
bar (abs) |
1.2 |
1.2 |
1.6 |
||||||
|
- low gas lock-out mechanism |
bar (abs) |
1.1 |
1.1 |
1.6 |
||||||
|
Weight |
|
|
|
|||||||
|
NXB (manual operated type) |
kg |
|
82 |
|
||||||
|
NXA (manual operated type) |
kg |
|
117 |
|
||||||
|
NXBD (manual operated type) |
kg |
|
138 |
|
||||||
|
Degree of protection of the mechanism box |
|
IP67 |
IP67 |
IP67 |
||||||
