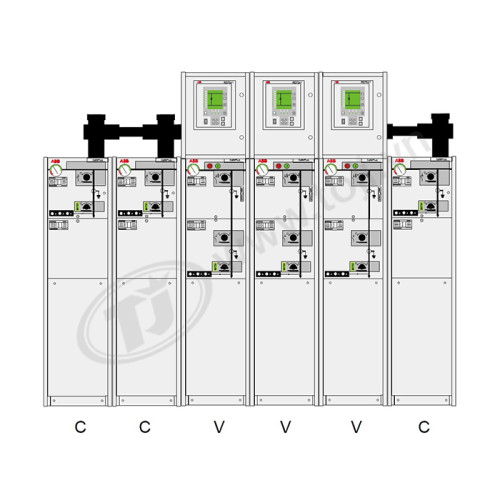

Tủ trung thế RMU ABB Safeplus Modular
- Nhà sản xuất: ABB
- Dòng sản phẩm: Tủ trung thế
- Số lượng sản phẩm trong kho: 1
SafePlus is a metal enclosed compact switchgear system for up to 24 kV distribution applications. The switchgear has a unique flexibility due to its extendability and the possible combination of fully modular and semi-modular configurations.
SafePlus combined with SafeRing, which is ABBs standard ring main unit, represent a complete solution for 12/24 kV distribution networks. SafePlus and SafeRing have identical user interfaces.
SafePlus is a completely sealed system with a stainless steel tank containing all live parts and switching functions.
A sealed steel tank with constant atmospheric conditions ensures a high level of reliability as well as personnel safety and a virtually maintenance-free system. As an option external busbars can be provided to obtain full modularity.
The external busbar kit has to be mounted to the switchgear on site. It is fully insulated and screened to ensure reliability and climatic independence.
The SafePlus system offers a choice of either switch-fuse combination or a circuit-breaker with relay for protection of the transformer.
SafePlus accommodates a wide selection of protection relays for most applications.
SafePlus can also be supplied with remote control and monitoring equipment.
SafePlus (except M- modules) is supplied with the following standard equipment:
– Earthing switches (not for D module)
– Operating mechanisms with integral mechanical interlocking
– Operating handle
– Facilities for padlocks on all switching functions
– Bushings for cable connection in front (not for Sl-, Sv- and Bemodules)
– Cable compartment covers
– Manometer for SF6 pressure monitoring (temperature compensated)
– Lifting lugs for easy handling
